Ganon Battle Rubble

Ganon Battle Rubble is a prop actor in Ocarina of Time.

← All actors

Placement

Ganon's Castle rubble, with real collision, so the piles are surfaces the player can climb and stand on. The one thing that removes it is entering the room on a cutscene setup, which is the opposite of what its name suggests. Otherwise it stands on its own: it watches for Ganon each frame to know when to collapse, never finds him, and stays put.

Rubble variants (11)

This actor is placed in one of these forms. Pick it from the editor's Rubble dropdown. The value is what the actor's parameters store. Each picture is fitted to its cell, so compare the stated sizes and not the images.

ValueRubble

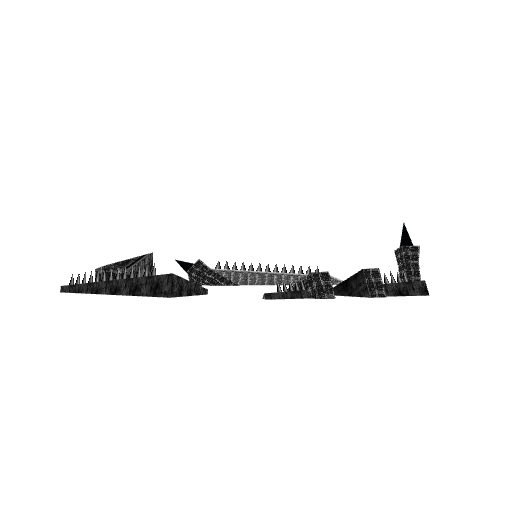

Arena Ring4Arena Ring~363 units tallThe Arena Ring puffs smoke at three fixed spots in Ganon's arena rather than at wherever you place it. In any other scene that reads as smoke drifting out of thin air across the map.

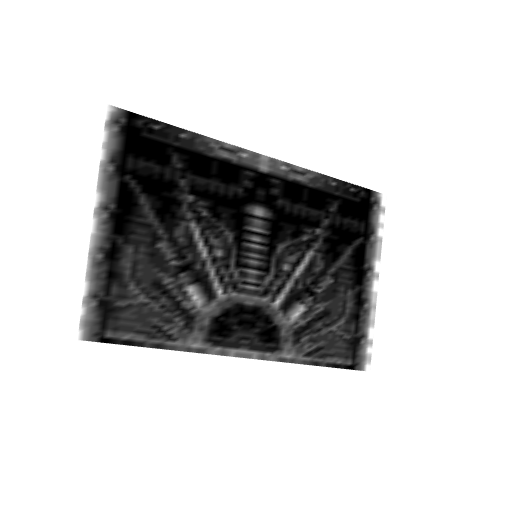

Pile 18Pile 1~156 units tall

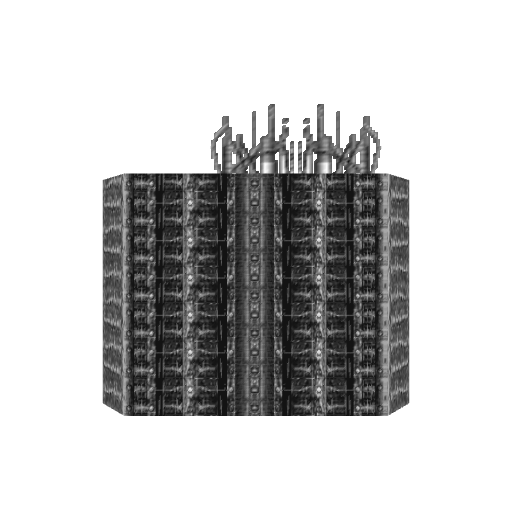

Pile 29Pile 2~183 units tall

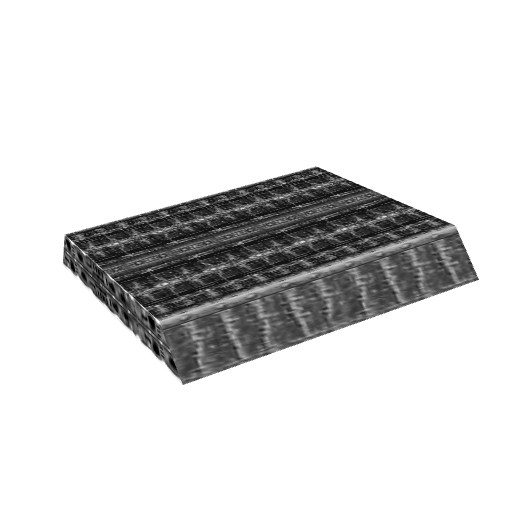

Pile 310Pile 3~126 units tall

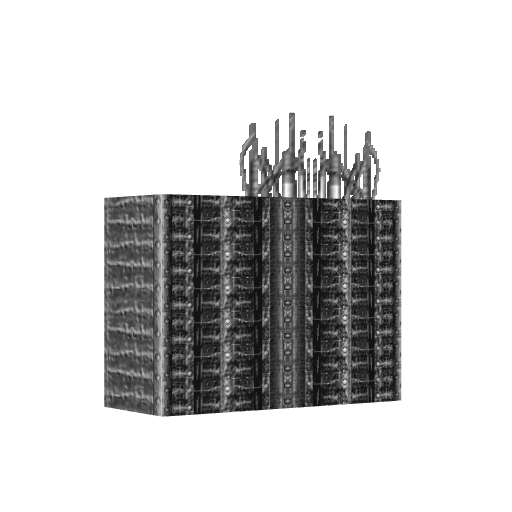

Pile 411Pile 4~175 units tall

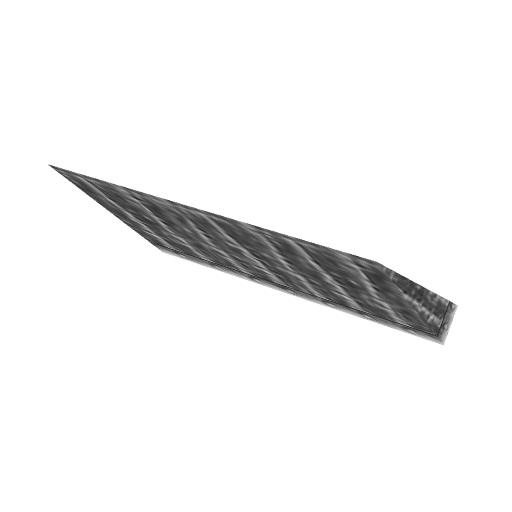

Pile 512Pile 5~138 units tall

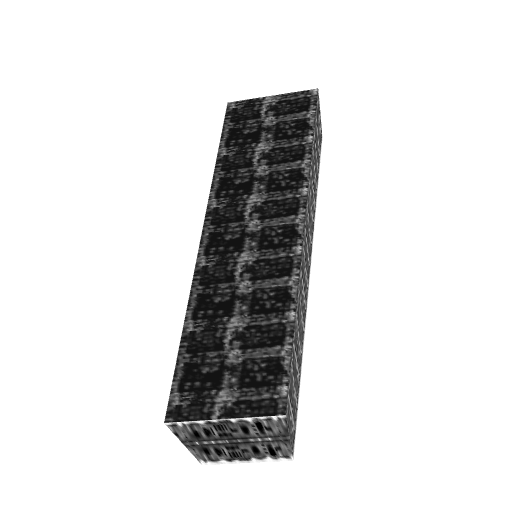

Pile 613Pile 6~237 units tall

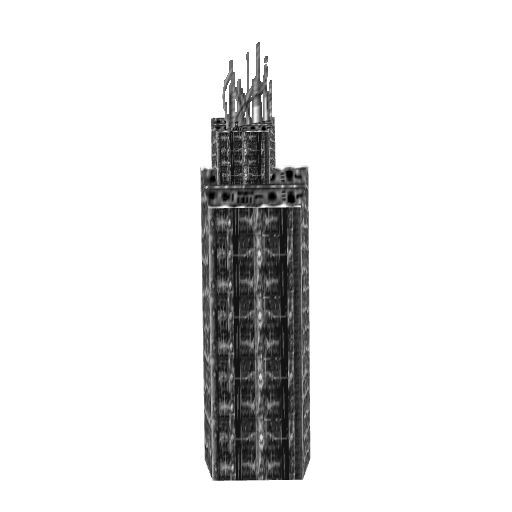

Pile 714Pile 7~372 units tall
No preview yet16Destructible 1 (invisible alone)The destructible pieces spawn with no model and no collision. They only turn up once Ganondorf becomes Ganon, which nothing you can place makes happen, so on their own they stay invisible forever. Use a Pile instead.
No preview yet17Destructible 2 (invisible alone)The destructible pieces spawn with no model and no collision. They only turn up once Ganondorf becomes Ganon, which nothing you can place makes happen, so on their own they stay invisible forever. Use a Pile instead.
No preview yet22Destructible, Tall (invisible alone)The destructible pieces spawn with no model and no collision. They only turn up once Ganondorf becomes Ganon, which nothing you can place makes happen, so on their own they stay invisible forever. Use a Pile instead.

Parameters

Beyond the rubble above, the parameters hold these fields. The editor shows each as a labelled control.

15141312111098765432100000000000001000Rubble

Shown: 0x0008, the value a newly placed copy starts with.

Appears in (1)

Ganon BossGanon Boss

Model

What this actor draws, and where each piece lives in the archive. A mod replaces a piece by writing a file at the same path.

Arena Ring
Display listobjects/object_gj/gGanonsCastleRubbleAroundArenaDL
Pile 1
Display listobjects/object_gj/gGanonsCastleRubble2DL
Pile 2
Display listobjects/object_gj/gGanonsCastleRubble3DL
Pile 3
Display listobjects/object_gj/gGanonsCastleRubble4DL
Pile 4
Display listobjects/object_gj/gGanonsCastleRubble5DL
Pile 5
Display listobjects/object_gj/gGanonsCastleRubble6DL
Pile 6
Display listobjects/object_gj/gGanonsCastleRubble7DL
Pile 7
Display listobjects/object_gj/gGanonsCastleRubbleTallDL
