Wooden Door

Wooden Door is a door actor in Majora's Mask.

← All actors

Placement

No placement notes yet. This actor hasn't been reviewed in depth, so a placed copy may have quirks not documented here.

Type variants (8)

This actor is placed in one of these forms. Pick it from the editor's Type dropdown. The value is what the actor's parameters store.

	Value	Type
	0	Open (closable whole days)

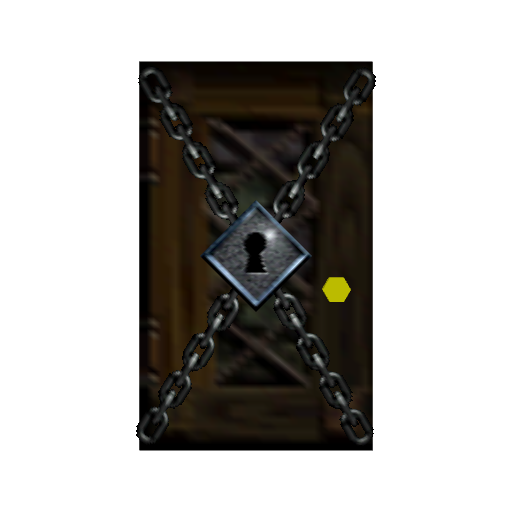

	1	Locked (small key)

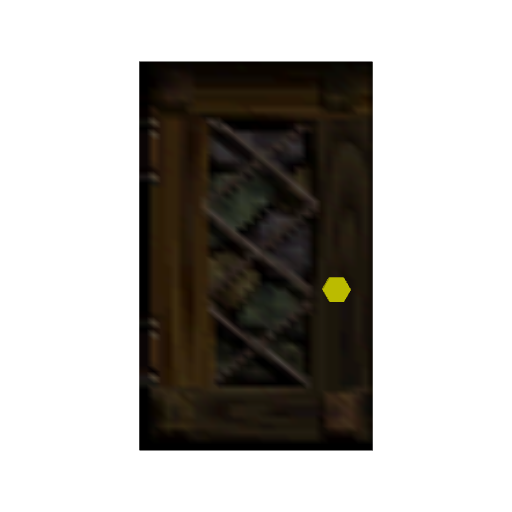

	2	Open (closable dawns)
	3	Open (closable nights)
	4	Ajar (unused)

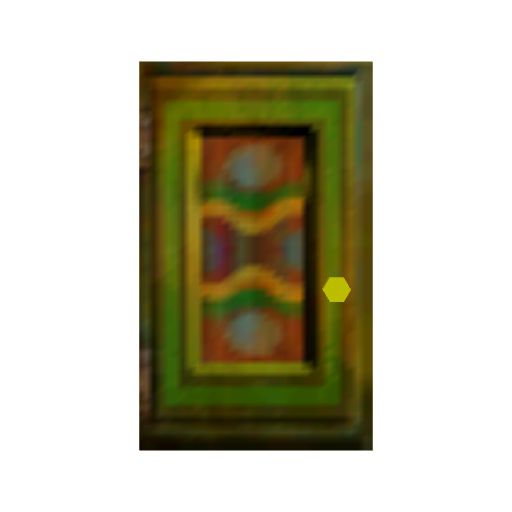

	5	Schedule
	6	6 (unreferenced)
	7	Framed (unused)

Parameters

Beyond the type above, the parameters hold these fields. The editor shows each as a labelled control.

• Transition Index bits 10–15: 0–63all 64 values usedWhich entry of the scene's door list this actor uses. The entry names the two rooms it sits between and the camera used walking through. Prelude sets it when you pick the rooms, so leave it alone. A value past the end of the list crashes the game.
• Type bits 7–9: 0 Open (closable whole days), 1 Locked (small key), 2 Open (closable dawns), 3 Open (closable nights), 4 Ajar (unused), 5 Schedule, 6 6 (unreferenced), 7 Framed (unused)all 8 values used
• Switch Flag (set when unlocked) bits 0–6: 0–127. Read when Type = Locked.all 128 values usedOne of the scene's 128 switch flags — actors sharing a number are linked (a setter triggers every consumer on it). Persistence by range: 0–63 saved with the scene, 64–127 temporary (reset when you leave). Pick a number nothing else in this scene uses unless you mean to link them; the panel's link list shows who shares it.
• Closed Half-Days Index bits 0–2: 0–7. Read when day/night types.all 8 values usedIndex into the game's half-day mask table (D_801AED48) picking which days / dawns / nights this door refuses to open.
• Text Offset bits 3–6: 0–15. Read when day/night types.all 16 values usedOffset from the door type's base message id — which 'this door is closed' line plays.
• Schedule bits 0–6: 32 options. Read when Type = Schedule.32 of 128 values used

Appears in (43)

Astral ObservatoryBeneath Graveyard and Dampe's HouseBeneath the GraveyardBomb ShopCucco ShackCuriosity ShopDoggy RacetrackEast Clock TownGreat Bay CoastHoney & Darling's ShopIkana CanyonIkana GraveyardLaundry PoolLottery ShopMagic Hags' Potion ShopMama's House & BarnMarine Research LabMilk BarMountain SmithyMountain Village (spring)Mountain Village (winter)Music Box HouseOceanside Spider HousePirates' FortressPirates' Fortress InteriorPost OfficeRoad to Southern SwampRomani RanchSouth Clock TownSouthern Swamp (Clear)Southern Swamp (poison)Stock Pot InnSwamp Shooting GallerySwordsman's SchoolTermina FieldThe Mayor's ResidenceTourist InformationTown Shooting GalleryTrading PostTreasure Chest ShopWest Clock TownZora HallZora Hall Rooms

Model

What this actor draws, and where each piece lives in the archive. A mod replaces a piece by writing a file at the same path. A replaced limb is a part the actor swaps in while it draws. An added limb is a part it draws on top of the skeleton.

Objects loaded

• objects/gameplay_keep shared with 161 other actors
• objects/object_wdor03
• objects/gameplay_dangeon_keep shared with 9 other actors

An edit to a shared object reaches every actor that loads it.
